Intro

If you’ve spent any time at the reloading bench, you already know primers are the ignition point of your cartridge. Pull the trigger, the firing pin smacks the primer, the primer ignites the powder, and the bullet leaves the building. Simple in concept. Less simple when you’re staring at a five-gallon bucket of mixed range brass and trying to figure out what fits what.

This post breaks down the difference between large and small primers, which calibers use what, the four calibers that come in both primer sizes (and will lie to you), the weird lead-free primer story behind small primer .45 ACP, and how primer size should change the way you sort brass before you start loading.

The Two Sizes That Matter

There are two primer diameters in standard center fire reloading:

• Small primers measure 0.175 inches across
• Large primers measure 0.210 inches across

That’s a 0.035-inch difference. Doesn’t sound like much. It’s enough that you can’t substitute one for the other without modifying the brass, and you shouldn’t try.

Within each size, you’ve got pistol and rifle versions, plus magnum variants:

• Small Pistol Primer (SPP)
• Small Pistol Magnum Primer
• Small Rifle Primer (SRP)
• Small Rifle Magnum Primer
• Large Pistol Primer (LPP)
• Large Pistol Magnum Primer
• Large Rifle Primer (LRP)
• Large Rifle Magnum Primer

Same outer dimensions within a size class. Different cup thickness, different priming compound, different brisance. Pistol primers have softer cups because pistol firing pins hit lighter. Rifle primers have harder cups to handle higher pressures and stiffer firing pin strikes. Swap them and you risk pierced primers, slam fires, or weak ignition. Don’t.

Which Calibers Use Which Primers

Here’s the cheat sheet for the most common calibers reloaders are buying brass for:

Small Pistol Primers

• 9mm Luger
• .380 ACP
• .38 Special
• .357 Magnum (uses Small Pistol Magnum)
• .32 ACP

Large Pistol Primers

• .44 Special
• .44 Magnum
• .45 Long Colt

Small Rifle Primers

• .223 Remington / 5.56 NATO
• .22 Hornet
• .204 Ruger
• .17 Remington

Large Rifle Primers

• .30-06
• .270 Winchester
• .300 Win Mag (uses Large Rifle Magnum)
• 7.62x54R

The Calibers That Use Both: .45 ACP, 10mm, .308 Win, and 6.5 Creedmoor

This is where new reloaders get burned. A handful of common calibers come in both small and large primer pocket versions, and the brass looks identical from the outside.

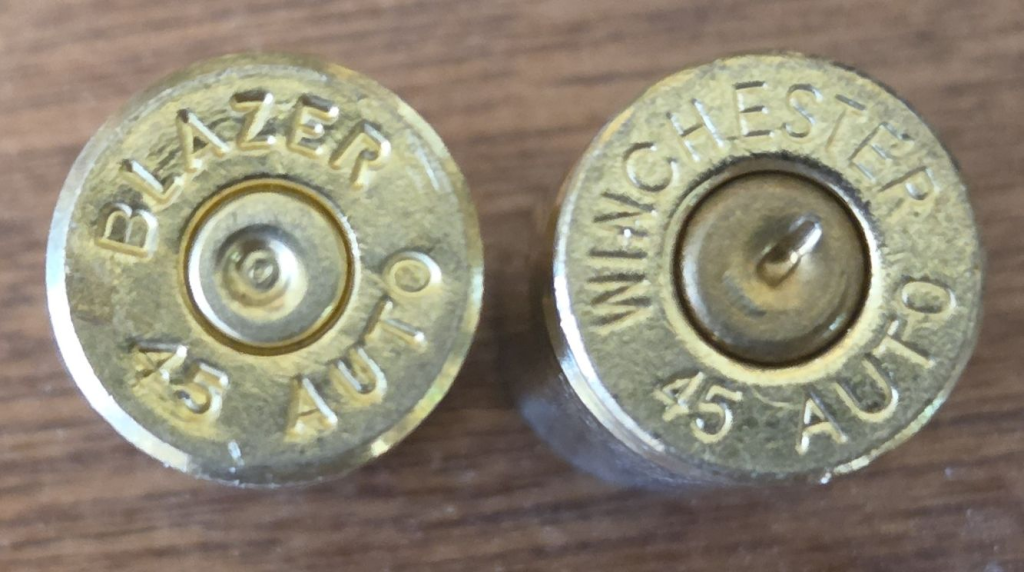

.45 ACP. Traditionally uses Large Pistol Primer, but small primer .45 ACP brass has been around since the early 2000s thanks to a lead-free primer experiment that I’ll explain in this post. Federal, Speer, Winchester, Blazer, and CCI have all loaded .45 ACP with Small Pistol Primers at various points. Today, mixed range pickup .45 brass is roughly half and half.

10mm Auto. Same story, smaller scale. Most 10mm brass uses Large Pistol Primers, but Starline and a few others have produced small primer pocket 10mm. If you reload 10mm, check every case.

.308 Winchester. Standard .308 uses Large Rifle Primers, but Lapua “Palma” brass, Starline Match, Hornady SRP, and Alpha Munitions all make .308 with Small Rifle Primer pockets. The Palma version was developed with the US Palma team for long-range competition and reportedly handles full-pressure loads through twice as many firings as standard LRP brass. If a precision shooter is selling off once-fired .308, ask which kind it is before you buy.

6.5 Creedmoor. Hornady, Starline, and Lapua all make 6.5 Creedmoor brass. Most of it is Large Rifle Primer, but small primer pocket versions exist — Lapua and Peterson have offered SRP brass aimed at precision shooters who claim it gives more consistent ignition with modern powders. If you’re buying once-fired Creedmoor brass, primer pocket size needs to be in the listing.

The takeaway: sort by primer pocket, not by head stamp. Small primer pocket and large primer pocket brass look almost identical from the outside. Mix them up and your press will either crush a large primer trying to seat it in a small pocket, or refuse to seat a small primer in a large pocket.

The fix: separate them. Some reloaders dedicate dies and brass to one primer size and sell off the other. Which is exactly why brass sorted by primer size is worth more to a reloader than mixed brass.

Primer Pocket Prep: The Step Most People Skip

Once you’ve got your brass sorted by primer size, there’s still work to do before priming:

Crimped pockets. Military brass — anything with NATO head stamps, LC, RA, WCC — has crimped primer pockets. The crimp is a ring of brass swaged into the primer pocket to keep primers from backing out under heavy use. You either need to swage the crimp out with a tool like a Dillon Super Swage 600 or a Hornady Primer Pocket Swager, or cut it out with a chamfering tool. Skip this step and you’ll crush primers and probably bend a decapping pin.

Pocket uniforming. Factory primer pockets aren’t always cut to consistent depth. For precision rifle reloading, a pocket uniformer cuts every pocket to the same depth, which gives you more consistent primer seating and ignition. For plinking ammo, don’t bother.

Cleaning. Carbon residue in primer pockets builds up after a few firings. A primer pocket brush or a quick spin in a wet tumbler with stainless pins clears it out. Clean pockets seat primers more consistently.

Why This Matters When You Buy Brass

If you’re buying once-fired brass online — whether it’s from me at smithwerder.com or someone else — primer size is the first sorting criteria that should already be done for you. Mixed primer .45 ACP, 10mm, or 6.5 Creedmoor brass is a headache. Crimped primer pocket .223 brass without that crimp removed is hours of bench time you didn’t budget for.

When you’re shopping, look for brass listed as:

• Sorted by caliber and primer size
• De-primed or live (your preference)
• Crimp removed (especially for military rifle brass)
• Cleaned and polished (saves you a tumbling cycle)

The cleaner and more sorted the brass shows up, the faster you get to actually loading rounds. That’s worth paying a few cents more per case.

Storage and Shelf Life

Quick note since people ask: primers stored in their original sealed packaging in a cool, dry place last decades. I’ve shot primers from the 1970s with no issues. Heat and humidity are the enemies. Don’t store them above an oven or in a damp basement, and they’ll outlive you.

Bottom Line

Large primers and small primers aren’t interchangeable. Pistol and rifle primers within the same size class aren’t interchangeable either. Magnum variants exist for slow-burning powders and large case capacities. .45 ACP, 10mm, .308 Winchester, and 6.5 Creedmoor brass all need to be sorted by primer pocket size before you ever drop them in the press. And whether you’re buying brass or scavenging it from the range, knowing what primer goes where saves you time, components, and at least one pierced primer per session. Brass sorted by caliber AND primer size is the foundation of efficient reloading.
